水晶振動子Quartz crystal devices
※2018年6月11日更新
HC-49/US HC-49/U UM-シリーズ HCM49S FSXｰシリーズ(SMDタイプ) KHz帯水晶振動子
→水晶発振器在庫へ水晶振動子/QUARTZ CRYSTAL UNITS
このページの先頭へ
HC-49/US HC-49/U UM-シリーズ HCM49S FSXｰシリーズ(SMDタイプ) KHz帯水晶振動子
→水晶発振器在庫へ
水晶振動子/QUARTZ CRYSTAL UNITS

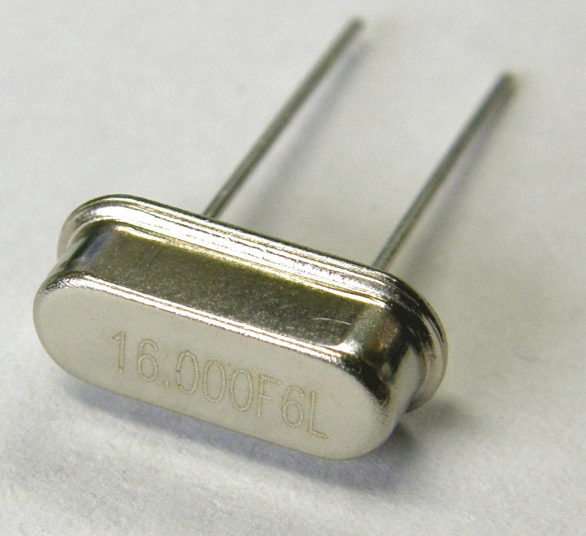

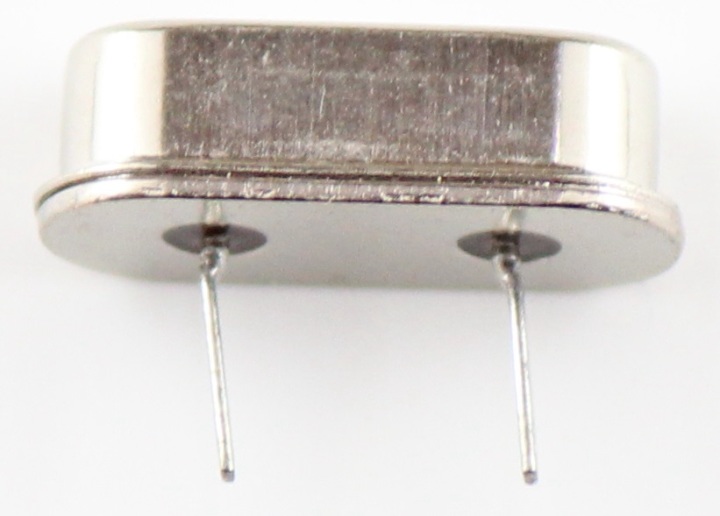

HC-49/US |
|||||||
| 型名, Size |
イメージ, 仕様書 |
周波数 (MHz) |
周波数 偏差 (25ﾟC) |
温度特性 | 負荷 容量 |
在庫 数量 |
|
| HCｰ49/US 11.5×4.65×3.5 |
3.579545 | ±50ppm | ±50ppm -10℃~70℃ |
22pF | 53 | ||
| HCｰ49/US 11.5×4.65×3.5 |
4.096 | ±50ppm | ±50ppm -10℃~70℃ |
20pF | 164 | ||
| HCｰ49/US 11.5×4.65×3.5 |
4.194304 | ±50ppm | ±50ppm -10℃~70℃ |
18pF | 40 | ||
| HCｰ49/US 11.5×4.65×3.5 |
4.323 | ±50ppm | ±50ppm -10℃~70℃ |
12pF | 975 | ||
| HCｰ49/US 11.5×4.65×3.5 |
4.9152 | ±50ppm | ±50ppm -10℃~70℃ |
30pF | 45 | ||
| HCｰ49/US 11.5×4.65×3.5 |
6.000 | ±45ppm | ±50ppm -20℃~70℃ |
16pF | 250 | ||
| HCｰ49/US 11.5×4.65×3.5 |
6.144 | ±30ppm | ±50ppm -20℃~70℃ |
16pF | 314 | ||
| HCｰ49/US 11.5×4.65×3.5 |
6.400 | ±50ppm | ±50ppm -20℃~70℃ |
12pF | 68 | ||
| HCｰ49/US 11.5×4.65×3.5 |
6.7585 | ±50ppm | ±50ppm -10℃~60℃ |
20pF | 90 | ||
| HCｰ49/US 11.5×4.65×3.5 |
7.000 | ±30ppm | ±50ppm -10℃~70℃ |
16pF | 392 | ||
| HCｰ49/US 11.5×4.65×3.5 |
8.000 | ±30ppm | ±50ppm -10℃~70℃ |
12pF | 100 | ||
| HCｰ49/US 11.5×4.65×3.5 |
9.600 | ±30ppm | ±30ppm -0℃~70℃ |
16pF | 5 | ||
| HCｰ49/US 11.5×4.65×3.5 |
9.8304 | ±30ppm | ±50ppm -20℃~70℃ |
20pF | 320 | ||
| HCｰ49/US 11.5×4.65×3.5 |
10.000 | ±30ppm | ±50ppm -10℃~70℃ |
20pF | 97 | ||
| HCｰ49/US 11.5×4.65×3.5 |
10.245 | ±15ppm | ±30ppm -10℃~70℃ |
20pF | 140 | ||
| HCｰ49/US 11.5×4.65×3.5 |
11.0592 | ±30ppm | ±50ppm -20℃~70℃ |
16pF | 501 | ||
| HCｰ49/US 11.5×4.65×3.5 |
12.000 | ±30ppm | ±50ppm -40℃~85℃ |
12pF | 784 | ||
| HCｰ49/US 11.5×4.65×3.5 |
13.560 | ±50ppm | ±50ppm -10℃~70℃ |
16pF | 22 | ||
| HCｰ49/US 11.5×4.65×3.5 |
14.31818 | ±30ppm | ±30ppm -10℃~70℃ |
16pF | 280 | ||
| HCｰ49/US 11.5×4.65×3.5 |
14.31818 | ±50ppm | ±50ppm -10℃~70℃ |
12pF | 30 | ||
| HCｰ49/US 11.5×4.65×3.5 |
14.7456 | ±50ppm | ±50ppm -10℃~70℃ |
16pF | 502 | ||
| HCｰ49/US 11.5×4.65×3.5 |
14.7456 | ±50ppm | ±50ppm -10℃~70℃ |
20pF | 2 | ||
| HCｰ49/US 11.5×4.65×3.5 |
14.7922 | ±15ppm | ±30ppm -10℃~70℃ |
20pF | 280 | ||
| HCｰ49/US 11.5×4.65×3.5 |
16.000 | ±30ppm | ±50ppm -20℃~70℃ |
16pF | 371 | ||
| HCｰ49/US 11.5×4.65×3.5 |
18.432 | ±30ppm | ±50ppm -10℃~70℃ |
12pF | 190 | ||
| HCｰ49/US 11.5×4.65×3.5 |
19.6608 | ±30ppm | ±50ppm -20℃~70℃ |
10pF | 50 | ||
| HCｰ49/US 11.5×4.65×3.5 |
20.000 | ±30ppm | ±50ppm -10℃~70℃ |
16pF | 474 | ||
| HCｰ49/US ﾘｰﾄﾞ3.3mm 11.5×4.65×3.5 |
|
20.250 | ±50ppm | ±50ppm -10℃~70℃ |
20pF | 40 | |
| HCｰ49/US 11.5×4.65×3.5 |
24.000 | ±50ppm | ±50ppm -10℃~70℃ |
12pF | 3 | ||
| HCｰ49/US 11.5×4.65×3.5 |
24.576 | ±50ppm | ±50ppm -10℃~70℃ |
12pF | 33 | ||
| HCｰ49/US 11.5×4.65×3.5 |
25.000 | ±30ppm | ±50ppm -10℃~70℃ |
12pF | 884 | ||
HC-49U |
|||||||
| 型名, Size |
イメージ, 仕様書 |
周波数 (MHz) |
周波数 偏差 (25ﾟC) |
温度特性 | 負荷 容量 |
在庫 数量 |
|
| HCｰ49/U 10.8×5.0×13.4 |
1.000 | ±100ppm | ±100ppm -20℃~70℃ |
18pF | 3 | ||
| HCｰ49/U 10.8×5.0×13.4 |
1.8432 | ±50ppm | ±50ppm -20℃~70℃ |
30pF | 100 | ||
| HCｰ49/U 10.8×5.0×13.4 |
2.500 | ±50ppm | ±50ppm -20℃~70℃ |
30pF | 40 | ||
| HCｰ49/U 10.8×5.0×13.4 |
3.579545 | ±45ppm | ±45ppm -20℃~70℃ |
16pF | 83 | ||
| HCｰ49/U 10.8×5.0×13.4 |
3.6864 | ±45ppm | ±45ppm -10℃~40℃ |
16pF | 52 | ||
| HCｰ49/U 10.8×5.0×13.4 |
4.000 | ±45ppm | ±45ppm -20℃~70℃ |
16pF | 160 | ||
| HCｰ49/U 10.8×5.0×13.4 |
4.194304 | ±45ppm | ±45ppm -20℃~70℃ |
16pF | 27 | ||
| HCｰ49/U 10.8×5.0×13.4 |
4.91520 | ±45ppm | ±45ppm -20℃~70℃ |
16pF | 122 | ||
| HCｰ49/U 10.8×5.0×13.4 |
7.000 | ±30ppm | ±30ppm -10℃~60℃ |
20pF | 210 | ||
| HCｰ49/U 10.8×5.0×13.4 |
7.15909 | ±30ppm | ±30ppm -10℃~60℃ |
16pF | 204 | ||
| HCｰ49/U 10.8×5.0×13.4 |
10.000 | ±20ppm | ±50ppm -20℃~70℃ |
20pF | 65 | ||
| HCｰ49/U 10.8×5.0×13.4 |
10.240 | ±20ppm | ±20ppm -10℃~10℃ |
20pF | 100 | ||
| HCｰ49/U 10.8×5.0×13.4 |
10.695 | ±20ppm | ±20ppm -20℃~70℃ |
20pF | 50 | ||
| HCｰ49/U 10.8×5.0×13.4 |
10.6975 | ±10ppm | ±10ppm -20℃~70℃ |
100pF | 15 | ||
| HCｰ49/U 10.8×5.0×13.4 |
12.000 | ±20ppm | ±45ppm -20℃~70℃ |
16pF | 622 | ||
| HCｰ49/U 10.8×5.0×13.4 |
14.015 | ±20ppm | ±20ppm -20℃~70℃ |
100pF | 14 | ||
| HCｰ49/U 10.8×5.0×13.4 |
14.460 | ±20ppm | ±50ppm -20℃~70℃ |
100pF | 1 | ||
| HCｰ49/U 10.8×5.0×13.4 |
16.000 | ±50ppm | ±50ppm -20℃~70℃ |
20pF | 450 | ||
| HCｰ49/U 10.8×5.0×13.4 |
20.000 | ±30ppm | ±45ppm -20℃~70℃ |
20pF | 309 | ||
| HCｰ49/U 10.8×5.0×13.4 |
24.576 | ±50ppm | ±50ppm -10℃~70℃ |
12pF | 20 | ||
| HCｰ49/U 10.8×5.0×13.4 |
25.000 | ±50ppm | ±50ppm -20℃~70℃ |
20pF | 134 | ||
| HCｰ49/U 10.8×5.0×13.4 |
28.6363 | ±30ppm | ±50ppm -20℃~70℃ |
20pF | 296 | ||
UM-シリーズ |
|||||||
| 型名, Size, 仕様書 |
イメージ | 周波数 (MHz) |
周波数 偏差 (25ﾟC) |
温度特性 | 負荷 容量 |
在庫 数量 |
|

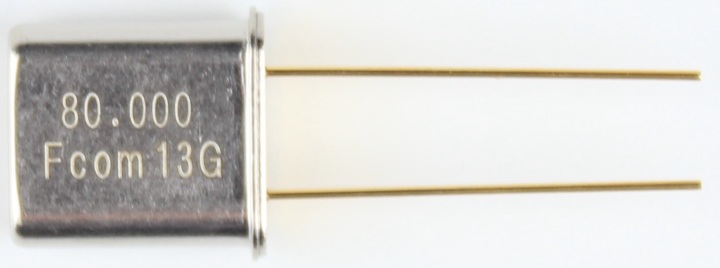

| UM-1(PDF) 7.9×3.2×8.1 |
|
80.000 | ±8ppm | 10~25ppm (Turn to Turn) |
Series | 0 | |
| UM-1(PDF) 7.9×3.2×8.1 |
100.000 (3rd overtone) |
±5ppm | 5~28ppm (Turn to Turn) |
Series | 10 | ||
| UM-1J(PDF) 7.9×4.0×8.1 |
|
80.000 | ±8ppm | 10~25ppm (Turn to Turn) |
Series | 2 | |

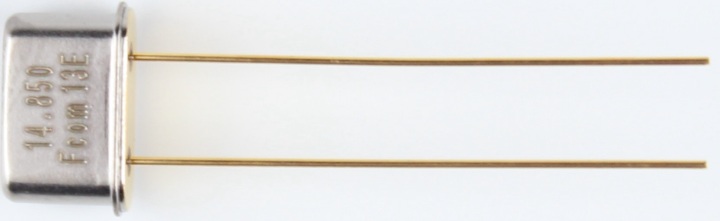

| UM-4(PDF) 7.1×3.2×4.8 |
|
14.850 | ±10ppm | ±4ppm -10℃~60℃ |
12pF | 8 | |
HCM49S |
|||||||
| 型名, Size |
イメージ | 周波数 (MHz) |
周波数 偏差 (25ﾟC) |
温度特性 | 負荷 容量 |
在庫 数量 |
|
| HCM49S 13.5×4.8×4.5 |
3.6864 | ±50ppm | ±50ppm -10℃~60℃ |
18pF | 42 | ||
| HCM49S 13.5×4.8×4.5 |
4.000 | ±30ppm | ±50ppm -10℃~70℃ |
12pF | 42 | ||
| HCM49S 13.5×4.8×4.5 |
4.9152 | ±50ppm | ±50ppm -20℃~70℃ |
16pF | 15 | ||
| HCM49S 13.5×4.8×4.5 |
6.000 | ±50ppm | ±50ppm -10℃~70℃ |
12pF | 100 | ||
| HCM49S 13.5×4.8×4.5 |
7.000 | ±45ppm | ±50ppm -10℃~70℃ |
16pF | 80 | ||
| HCM49S 13.5×4.8×4.5 |
9.8304 | ±45ppm | ±45ppm -30℃~85℃ |
20pF | 320 | ||
| HCM49S 13.5×4.8×4.5 |
10.000 | ±30ppm | ±50ppm -10℃~70℃ |
20pF | 85 | ||
| HCM49S 13.5×4.8×4.5 |
11.0592 | ±30ppm | ±30ppm -10℃~70℃ |
30pF | 200 | ||
| HCM49S 13.5×4.8×4.5 |
11.2896 | ±30ppm | ±50ppm -10℃~60℃ |
20pF | 459 | ||
| HCM49S 13.5×4.8×4.5 |
13.560 | ±50ppm | ±50ppm -10℃~70℃ |
16pF | 17 | ||
| HCM49S 13.5×4.8×4.5 |
14.31818 | ±50ppm | ±50ppm -10℃~70℃ |
20pF | 40 | ||
| HCM49S 13.5×4.8×4.5 |
14.7456 | ±50ppm | ±50ppm -10℃~70℃ |
16pF | 100 | ||
| HCM49S 13.5×4.8×4.5 |
16.000 | ±45ppm | ±50ppm -20℃~70℃ |
16pF | 97 | ||
| HCM49S 13.5×4.8×4.5 |
16.000 | ±50ppm | ±50ppm -0℃~70℃ |
16pF | 50 | ||
| HCM49S 13.5×4.8×4.5 |
20.000 | ±30ppm | ±30ppm -10℃~70℃ |
12pF | 140 | ||
| HCM49S 13.5×4.8×4.5 |
22.1184 | ±30ppm | ±30ppm -10℃~70℃ |
20pF | 42 | ||
| HCM49S 13.5×4.8×4.5 |
24.000 | ±50ppm | ±50ppm -10℃~70℃ |
20pF | 40 | ||
| HCM49S 13.5×4.8×4.5 |
24.000 | ±50ppm | ±50ppm -10℃~70℃ |
12pF | 68 | ||
| HCM49S 13.5×4.8×4.5 |
24.576 | ±30ppm | ±30ppm -10℃~60℃ |
20pF | 71 | ||
| HCM49S 13.5×4.8×4.5 |
25.000 | ±50ppm | ±30ppm 0℃~70℃ |
10pF | 272 | ||
| HCM49S 13.5×4.8×4.5 |
27.120 | ±50ppm | ±30ppm -10℃~70℃ |
12pF | 10 | ||
| HCM49S 13.5×4.8×4.5 |
28.6363 | ±50ppm | ±30ppm -10℃~70℃ |
18pF | 30 | ||
| HCM49S 13.5×4.8×4.5 |
48.000 | ±30ppm | ±30ppm -10℃~70℃ |
12pF | 5 | ||
FSX-シリーズ SMD(表面実装)タイプ |
|||||||
| 型名, Size |
イメージ | 周波数 (MHz) |
周波数 偏差 (25ﾟC) |
温度特性 | 負荷 容量 |
在庫 数量 |
|

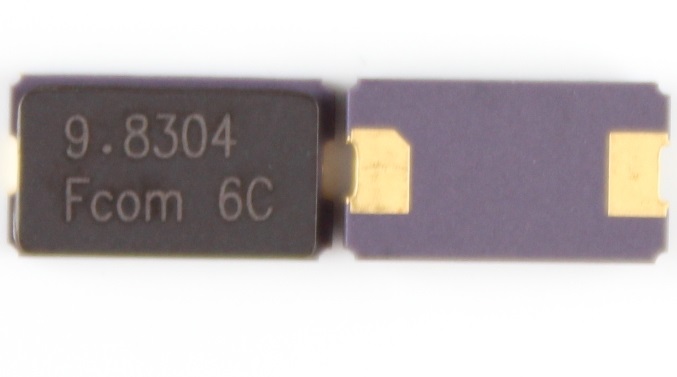

| FSX-8L 8.0×4.5×1.6 |
8.000 | ±30ppm | ±30ppm -10℃~70℃ |
18pF | 1,000 | ||
| FSX-8L 8.0×4.5×1.6 |
9.8304 | ±50ppm | ±50ppm -10℃~70℃ |
12pF | 135 | ||
| FSX-8L 8.0×4.5×1.6 |
12.000 | ±50ppm | ±50ppm -10℃~70℃ |
12pF | 26 | ||
| FSX-8L 8.0×4.5×1.6 |
25.000 | ±30ppm | ±50ppm -10℃~70℃ |
20pF | 164 | ||
| FSX-8L 8.0×4.5×1.6 |
28.322 | ±25ppm | ±50ppm -10℃~70℃ |
20pF | 16 | ||
| FSX-7M 7.0×5.0×1.1 |
9.216 | ±50ppm | ±50ppm -40℃~85℃ |
16pF | 40 | ||
| FSX-7M 7.0×5.0×1.1 |
9.8304 | ±15ppm | ±30ppm -20℃~70℃ |
32pF | 28 | ||
| FSX-7M 7.0×5.0×1.1 |
10.000 | ±20ppm | ±50ppm -20℃~70℃ |
18pF | 48 | ||
| FSX-7M 7.0×5.0×1.1 |
12.000 | ±50ppm | ±50ppm -10℃~70℃ |
16pF | 28 | ||
| FSX-7M 7.0×5.0×1.1 |
19.6608 | ±30ppm | ±50ppm -10℃~70℃ |
20pF | 400 | ||
| FSX-7M 7.0×5.0×1.1 |
20.000 | ±50ppm | ±50ppm -10℃~70℃ |
20pF | 14 | ||
| FSX-7M 7.0×5.0×1.1 |
22.5792 | ±30ppm | ±50ppm -10℃~70℃ |
20pF | 90 | ||
| FSX-7M 7.0×5.0×1.1 |
24.576 | ±30ppm | ±50ppm -10℃~70℃ |
20pF | 90 | ||
| FSX-7M 7.0×5.0×1.1 |
28.63636 | ±30ppm | ±30ppm -10℃~70℃ |
12pF | 70 | ||

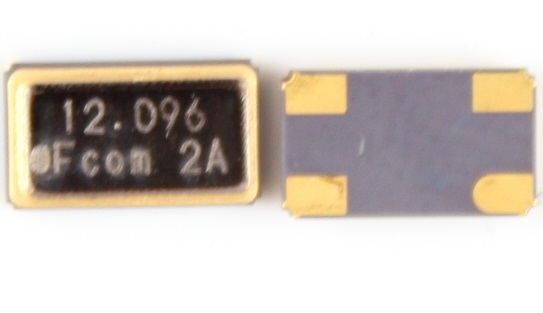

| FSX-6M 6.0×3.5×1.3 |
12.000 | ±50ppm | ±50ppm -10℃~70℃ |
12pF | 488 | ||
| FSX-6M 6.0×3.5×1.3 |
22.5792 | ±50ppm | ±50ppm -10℃~70℃ |
20pF | 12 | ||
| FSX-6M 6.0×3.5×1.3 |
24.576 | ±30ppm | ±50ppm 0℃~60℃ |
20pF | 8 | ||
| FSX-6M 6.0×3.5×1.3 |
40.000 | ±50ppm | ±50ppm -10℃~70℃ |
20pF | 56 | ||
| FSX-6M2 6.0×3.5×1.3 |
19.200 | ±10ppm | ±15ppm -40℃~85℃ |
9pF | 450 | ||
| FSX-6M2 6.0×3.5×1.3 |
20.000 | ±30ppm | ±50ppm -40℃~85℃ |
18pF | 65 | ||
| FSX-6M2 6.0×3.5×1.3 |
28.000 | ±10ppm | ±10ppm -10℃~70℃ |
9pF | 12 | ||

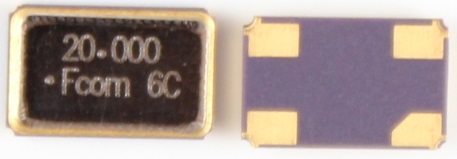

| FSX-5M 5.0×3.2×0.7 |
10.000 | ±30ppm | ±50ppm -20℃~70℃ |
10pF | 64 | ||
| FSX-5M 5.0×3.2×0.7 |
12.000 | ±30ppm | ±50ppm -20℃~70℃ |
18pF | 90 | ||
| FSX-5M 5.0×3.2×0.7 |
19.6608 | ±50ppm | ±30ppm -10℃~70℃ |
12pF | 50 | ||
| FSX-5M 5.0×3.2×0.7 |
20.000 | ±30ppm | ±30ppm -10℃~70℃ |
12pF | 33 | ||
| FSX-5M 5.0×3.2×0.7 |
24.000 | ±30ppm | ±30ppm -10℃~70℃ |
16pF | 180 | ||
| FSX-5M 5.0×3.2×0.7 |
24.576 | ±30ppm | ±30ppm -10℃~60℃ |
12pF | 4 | ||
| FSX-5M 5.0×3.2×0.7 |
25.000 | ±30ppm | ±30ppm -10℃~70℃ |
16pF | 258 | ||
| FSX-5L 5.0×3.2×1.3 |
24.000 | ±50ppm | ±50ppm -10℃~70℃ |
18pF | 180 | ||
| FSX-5L 5.0×3.2×1.3 |
25.000 | ±30ppm | ±30ppm -10℃~70℃ |
18pF | 270 | ||
| FSX-5L 5.0×3.2×1.3 |
27.000 | ±30ppm | ±30ppm -10℃~70℃ |
16pF | 100 | ||
| FSX-5L 5.0×3.2×1.3 |
28.636 | ±30ppm | ±30ppm 0℃~70℃ |
12pF | 930 | ||
| FSX-5L 5.0×3.2×1.3 |
48.000 | ±50ppm | ±50ppm -10℃~70℃ |
20pF | 80 | ||
| FSX-4M 4.0×2.5×0.8 |
25.000 | ±30ppm | ±30ppm -10℃~70℃ |
27pF | 75 | ||
| FSX-4M 4.0×2.5×0.8 |
27.000 | ±30ppm | ±30ppm -10℃~70℃ |
18pF | 56 | ||
| FSX-3M 3.2×2.5×0.7 |
12.000 | ±30ppm | ±30ppm -10℃~70℃ |
12pF | 176 | ||
| FSX-3M 3.2×2.5×0.7 |
14.31818 | ±30ppm | ±30ppm -10℃~70℃ |
16pF | 20 | ||
| FSX-3M 3.2×2.5×0.7 |
16.000 | ±10ppm | ±10ppm -20℃~70℃ |
12pF | 40 | ||
| FSX-3M 3.2×2.5×0.7 |
20.000 | ±50ppm | ±30ppm -20℃~70℃ |
10pF | 52 | ||
| FSX-3M 3.2×2.5×0.7 |
22.5792 | ±10ppm | ±10ppm -20℃~70℃ |
8pF | 20 | ||
| FSX-3M 3.2×2.5×0.7 |
24.000 | ±30ppm | ±30ppm -10℃~70℃ |
16pF | 58 | ||
| FSX-3M 3.2×2.5×0.7 |
24.576 | ±10ppm | ±10ppm -10℃~70℃ |
8pF | 12 | ||
| FSX-3M 3.2×2.5×0.7 |
25.000 | ±50ppm | ±30ppm -20℃~70℃ |
8pF | 62 | ||
| FSX-3M 3.2×2.5×0.7 |
33.8688 | ±30ppm | ±30ppm -10℃~70℃ |
12pF | 160 | ||
| FSX-3M 3.2×2.5×0.7 |
40.000 | ±30ppm | ±30ppm -20℃~70℃ |
8pF | 200 | ||

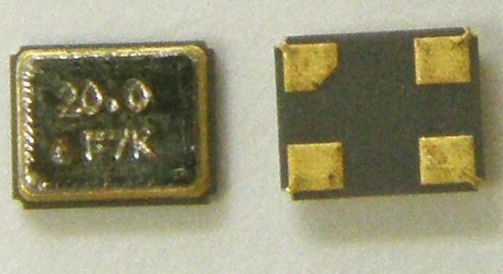

| FSX-2M 2.5×2.0×0.55 |
14.7456 | ±30ppm | ±30ppm -20℃~70℃ |
12pF | 84 | ||
| FSX-2M 2.5×2.0×0.55 |
30.000 | ±30ppm | ±50ppm -10℃~70℃ |
12pF | 11 | ||
このページの先頭へKHz帯水晶振動子
| 型名, Size |
イメージ | 周波数 (KHz) |
周波数 偏差 (25ﾟC) |
温度特性 | 負荷 容量 |
在庫 数量 |
|
| FTS26B(PDF) 1.9Φ×6.5 |
|
32.768 | ±20ppm | ±0.006ppm/ﾟC (-10℃~60ﾟC) |
12.5pF | 33 | |
| FTS38(PDF) 3.1Φ×8.2 |
32.768 | ±20ppm | 12.5pF | 384 | |||
| FTS38-F(PDF) 3.1Φ×8.2 |
32.768 | ±20ppm | 12.5pF | 538 | |||
| SP-T2A-F 8.7×3.7×2.5 |
32.768 | ±20ppm | ±0.008ppm/ﾟC (-40℃~85ﾟC) |
6.0pF | 900 | ||
| ST-3215A 3.2×1.5×0.75 |
32.768 | ±20ppm | ±0.008ppm/ﾟC (-40℃~85ﾟC) |
12.5pF | 207 |
バナースペース
富士コム有限会社
〒401-0310
山梨県南都留郡富士河口湖町勝山
１４３０−１
TEL 0555-73-3225
FAX 0555-83-2553
E-mail:info1@fujicom.jp
富士コムのTwitterページ↓
Follow @Fujicom_co
富士コムのFacebookページ↓
富士コム有限会社 Fujicom
co., Ltd.
Facebookページも宣伝
富士コムのLinkedInページ
