在庫情報HEADLINE
水晶振動子
HC-49/U
| イメージ データシート |
周波数 (MHz) |
偏差 (25℃) |
温度特性 | CL | 在庫 数量 |
|---|---|---|---|---|---|
 HC-49/U データシート |
1.8432 | ±50ppm | ±50ppm(-20℃~70℃) | 30pF | 52 |
| 2.500 | ±50ppm | ±50ppm(-20℃~70℃) | 30pF | 47 | |
| 2.560 | ±50ppm | ±50ppm(-20℃~70℃) | 30pF | 861 | |
| 3.579545 | ±45ppm | ±45ppm(-20℃~70℃) | 16pF | 73 | |
| 3.6864 | ±45ppm | ±45ppm(-10℃~40℃) | 16pF | 42 | |
| 4.000 | ±45ppm | ±45ppm(-20℃~70℃) | 16pF | 120 | |
| 4.194304 | ±45ppm | ±45ppm(-20℃~70℃) | 16pF | 25 | |
| 4.91520 | ±45ppm | ±45ppm(-20℃~70℃) | 16pF | 112 | |
| 7.000 | ±30ppm | ±30ppm(-10℃~60℃) | 20pF | 160 | |
| 7.15909 | ±30ppm | ±30ppm(-10℃~60℃) | 16pF | 154 | |
| 9.84375 | ±50ppm | ±10ppm(0℃~60℃) | 16pF | 6 | |
| 10.000 | ±50ppm | ±50ppm(-20℃~70℃) | 20pF | 70 | |
| 10.240 | ±20ppm | ±20ppm(-20℃~70℃) | 20pF | 100 | |
| 10.695 | ±15ppm | ±20ppm(-10℃~70℃) | 16pF | 5 | |
| 10.697 | ±15ppm | ±20ppm(-10℃~70℃) | 16pF | 60 | |
| 12.000 | ±20ppm | ±45ppm(-20℃~70℃) | 16pF | 472 | |
| 16.000 | ±50ppm | ±50ppm(-20℃~70℃) | 20pF | 406 | |
| 20.000 | ±30ppm | ±45ppm(-20℃~70℃) | 20pF | 309 | |
| 24.576 | ±50ppm | ±50ppm(-10℃~70℃) | 12pF | 20 | |
| 25.000 | ±50ppm | ±50ppm(-20℃~70℃) | 20pF | 124 | |
| 28.6363 | ±30ppm | ±50ppm(-20℃~70℃) | 20pF | 216 | |
| 33.8688 (3rd overtone) |
±20ppm | ±20ppm(-10℃~60℃) | series | 150 |
HC-49/US
| イメージ データシート |
周波数 (MHz) |
偏差 (25℃) |
温特 | CL | 在庫 数量 |
|---|---|---|---|---|---|
 データシート |
3.579545 | ±50ppm | ±50ppm(-10℃~70℃) | 22pF | 43 |
| 4.096 | ±50ppm | ±50ppm(-20℃~70℃) | 20pF | 134 | |
| 4.194304 | ±50ppm | ±50ppm(-10℃~70℃) | 18pF | 30 | |
| 4.3230 | ±45ppm | ±50ppm(-10℃~70℃) | 12pF | 795 | |
| 4.9152 | ±50ppm | ±50ppm(-10℃~40℃) | 12pF | 45 | |
| 6.000 | ±45ppm | ±50ppm(-20℃~70℃) | 16pF | 228 | |
| 6.144 | ±30ppm | ±50ppm(-20℃~70℃) | 16pF | 255 | |
| 6.400 | ±50ppm | ±50ppm(-20℃~70℃) | 12pF | 38 | |
| 6.7585 | ±50ppm | ±50ppm(-10℃~60℃) | 20pF | 50 | |
| 7.000 | ±30ppm | ±50ppm(-10℃~70℃) | 16pF | 400 | |
| 8.000 | ±30ppm | ±50ppm(-20℃~70℃) | 12pF | 60 | |
| 9.600 | ±30ppm | ±30ppm(0℃~70℃) | 16pF | 20 | |
| 9.8304 | ±30ppm | ±50ppm(-20℃~70℃) | 20pF | 291 | |
| 10.000 | ±30ppm | ±50ppm(-10℃~70℃) | 20pF | 100 | |
| 10.240 | ±15ppm | ±30ppm(-10℃~70℃) | 20pF | 20 | |
| 10.245 | ±15ppm | ±30ppm(-10℃~70℃) | 20pF | 173 | |
| 11.0592 | ±30ppm | ±50ppm(-20℃~70℃) | 16pF | 329 | |
| 12.000 | ±30ppm | ±50ppm(-40℃~85℃) | 12pF | 719 | |
| 12.288 | ±45ppm | ±45ppm(-20℃~70℃) | 16pF | 102 | |
| 13.560 | ±50ppm | ±50ppm(-10℃~70℃) | 16pF | 20 | |
| 14.31818 | ±50ppm | ±50ppm(-10℃~70℃) | 12pF | 100 | |
| ±50ppm | ±50ppm(-10℃~70℃) | 12pF | 20 | ||
| ±50ppm | ±50ppm(-20℃~70℃) | 20pF | 124 |
HCM49S
| イメージ データシート |
周波数 (MHz) |
偏差 (25℃) |
温特 | CL | 在庫 数量 |
|---|---|---|---|---|---|
 |
|||||

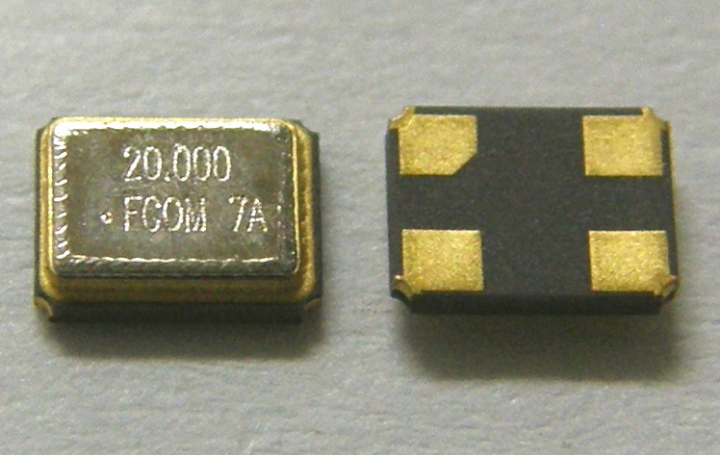

FSXシリーズ(表面実装)
| 型名 | イメージ データシート |
周波数 (MHz) |
偏差 (25℃) |
温特 | CL | 在庫 数量 |
|---|---|---|---|---|---|---|
| FSX-11M |  |
|||||
| FSX-7M |  |
|||||
| FSX-6M |  |
|||||
| FSX-5M |  |
|||||
| FSX-5L | ||||||
| FSX-3M | ||||||
| FSX-2M | ||||||
UMシリーズ
| 型名 | イメージ データシート |
周波数 (MHz) |
偏差 (25℃) |
温特 | CL | 在庫 数量 |
|---|---|---|---|---|---|---|
| UM-5 | ||||||
KHｚ帯水晶振動子
| 型名 | イメージ データシート |
周波数 (MHz) |
偏差 (25℃) |
温特 | CL | 在庫 数量 |
|---|---|---|---|---|---|---|
